Introduction :

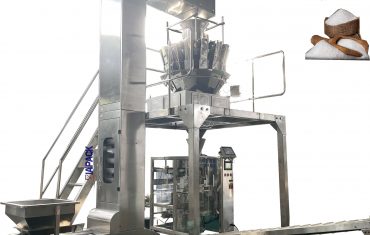

This machine can automatic realize functions of bag- making, filling, sealing, printing, cutting, etc. This machine can automatic reach the bag forming filling and sealing .
This packaging machine adopts import servo motor for film feed and the man-machine interface uses advanced touch screen. Operation simpler and more convenient.All of the components adopts international famous brand, PLC is SIEMENS, servo motor is PANASONIC, touch screen is SIEMENS, cylinder and air valve is SMC. parts which contact with material 、control cabinet 、main frame are made of stainless steel304
Technical Parameters:
Packing speed(MAX): 20-50bags/min
Bag type: pillow bag .gusseted bag
Bag size: bag width 80-350mm bag length 120-450mm
Compressed air consumption: 0.6 MPa 350 L/min
Electric requirement: 380V/5.5 kW50 Hz
Features :
Film transport system and horizontal Jaw motion both drived by Panasonic
Safe quick change of tube and collar by just pull out the braket
Optoelectronics detect film position on collar to correct film excursion
Electrical photo sensor inducting color code to control bag length
Unique Pneumatic Film-Reel locking structure to avoid film drawing deflecting
Independent temperature adjustment
