Product description
For Liquid & Semi-dense, such as Water, Juice, Milk, Purees, Sauces, Wax, Gels, Ointments

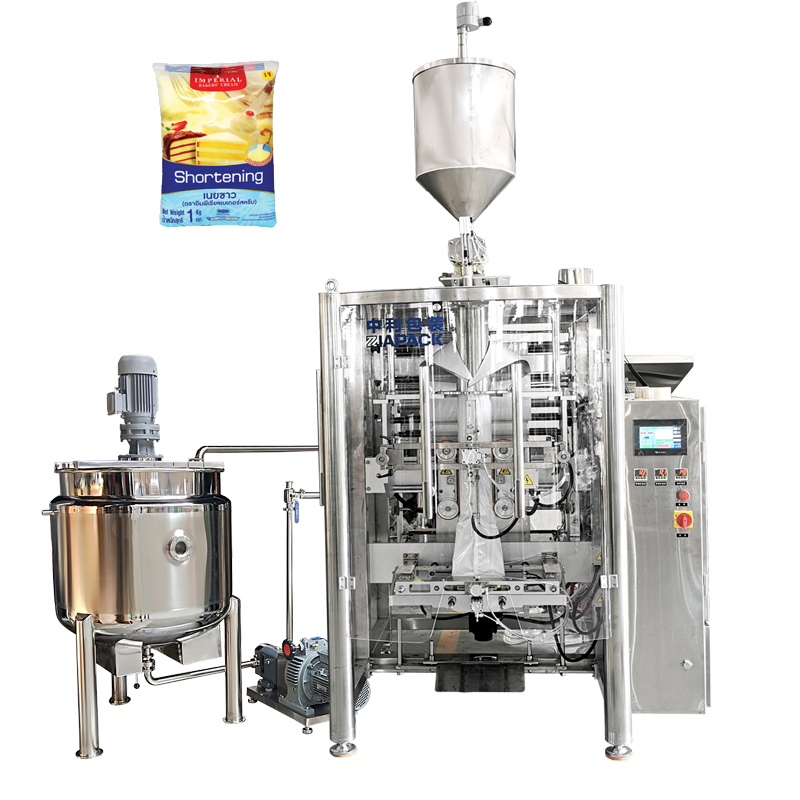

Integrated packaging system, including Liquid filler system, automatic bag making machine, and elevating roto pump, heating & mixer hopper is optional.
Features
- Stainless steel systems
- Wide range of package styles include pillow bag, gusseted bag, block bottom bag or quad seal packs
- With different measuring system can fill sauce ,oil ,paste and syrup .
- Up to 5 liter filling volume
- Pumps for continuous or intermittent liquid feed to bagger
- Rugged, durable equipment to withstand severe environment
- Customized to meet your production, package style and economic requirements
Technical Parameters
| Model | ZL-420 | ZL -520 | ZL -720 |
| Bag type | Pillow type bag; Gusseted bag /Flat bottom bag(Option) | ||
| Operation Mode | Intermittent | ||
| Speed | Up to 80 bags/min | 20 to 70bags/min | |
| Bag Length (single stroke) | 20 to 280mm (0.8 to 11’’) | 50 to 340mm (2.0 to 13.4’’) | 50 to 460mm (1.9’’ to 18’’) |
| Bag Width | 40 to 200mm (1.6 to 7.9’’) | 80 to 260mm (3.1 to 10.3’’) | 80 to 350mm (3.1’’ to 13.8’’) |
| Packing Weight | 10g to 1000g | 200g to 2000g | 500g to 3500g |
| Reel Film Width | ≤420mm (16.5’’) | ≤520mm (21.2’’) | ≤720mm (28.7’’) |
| Reel Outer Dia. | 400mm (15.7’’) | 400mm (15.7’’) | 500mm (19.7’’) |
| Reel Inner Dia. | 75mm (2.9’’) | ||
| Film thickness | 0.04-0.12mm (40-120mic.) | ||
| Voltage | AC220V/50Hz, 1phase or Per customer specification | ||
| Power Consumption | 3KW | ||
| Compressed Air Requirement | 0.6 MPa0.36 M3/min | ||
| Machine Weight | 600Kg | 800Kg | 1000Kg |
Liquid Machine
The Liquid Automatic Pouch Packing Machine is ideal for packing of all kinds of liquid and think-liquid, fruit juice, tomato sauce, all type oil, liquid detergent, and others. Equipped with feeding and measuring devices, the Liquid and Sauce VFFS Machine marketed under the name Liquid Forming Filling Sealing Machine, accomplishes feeding, measuring, filling, sealing, date printing, charging (exhausting), counting, and finished product delivery, in a continuous flow.
| Machine Name | Liquid VFFS Machine |
| Model | ZLM – 03 |
| Filling Capacity | 20 - 50ml, 100-250ml, to 500-1000ml |
| Machine Speed | 1000 to 4000 Pouches / Hr |
| Total Power | 2.5 KW 220v Single Phase 50 / 60Hz |
| Air Compresser | 8 CFM With 6 bar Pressure |
| Weigh | 450 Kg {Approx} |
| Dimension | 1520mm X 970mm X 1600mm (D x W x H) |
| Main Features | VFFS machine provides attractive bags for customers The vertical form fill seal machine accomplishes bagging, sealing, date printing, punching, and counting automatically The film drawing down system is controlled by a servo motor, offering automatic rectifying deviation The granule VFFS machine makes use of famous brand PLC and pneumatic system for vertical and horizontal sealing With low maintenance cost, the vertical packaging machine is easy to operate, and compatible with different internal or external measuring devices As to the way of bag making, the granule VFFS machine can make pillow type bags and standup Bags as per customer needs |
