Applications

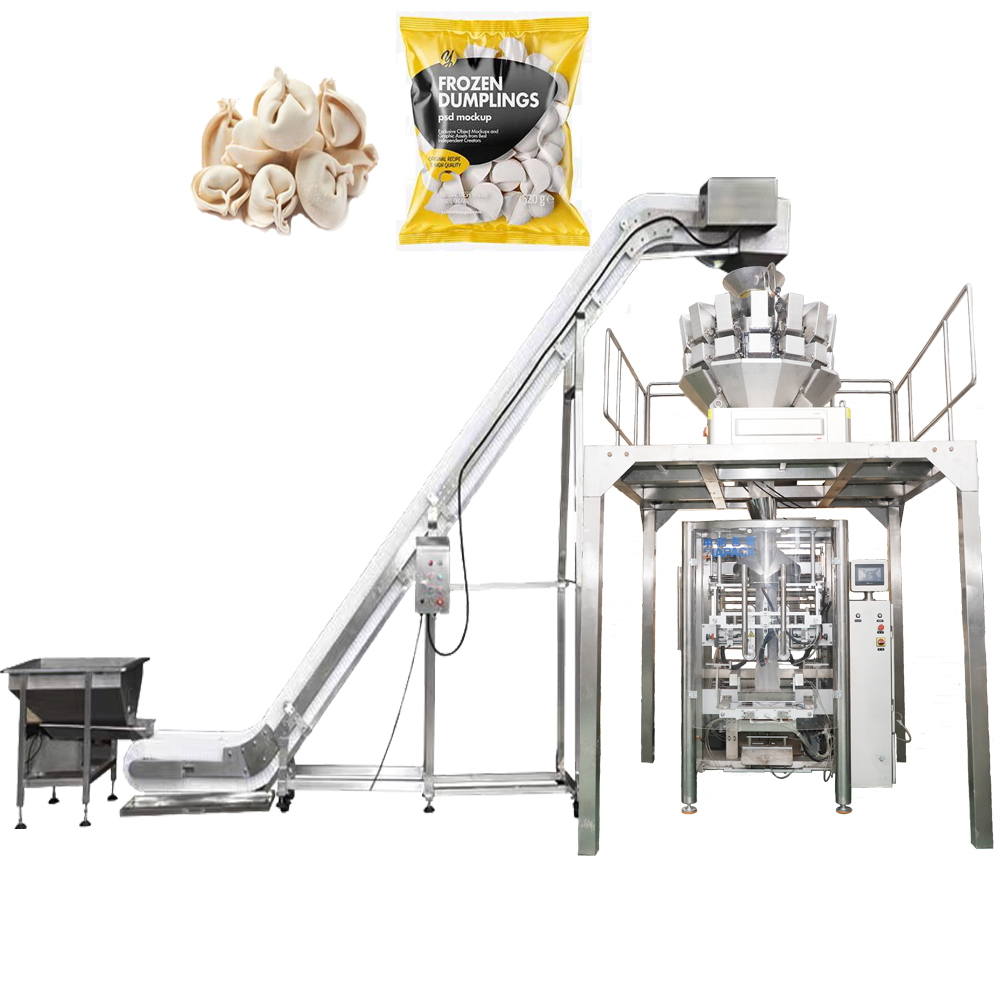

It's configured to produce four corner edge seal stand-up bags, quad seal bags, it’s also available to do pillow and gusset bag by option.
All kinds of grain material, sheet material, strip material and abnormity material which such as candy, melon seeds, chips, peanut, nutlet, preserved fruit, jelly, biscuit, confect, camphorball, currant, almond, chocolate, filbert, corn, Potato Crisps, pet foodstuff, dilatant foodstuff, hardware and plastic can be weighed by the ration.
Features
- User friendly PLC controller & Touch screen interface
- Unique back-seal design are extremely flexible to run quad seal, pillow, gusset bag.
- Independent temperature zones
- Servo-driven film transport and cross sealing jaw
- Vacuum pump assists film transport
- Guarding style allows greater access & easy maintenance
- Fully enclosed stainless steel & aluminum construction
- Robust long-life construction
Technical Specifications
| Model | ZL520 | ZL720 | |
| Bag style | pillow and gusset bag,Flat bottom bag | ||
| Bag length | Up to 360 | Up to 420mm | |
| Bag width | 100 to 250mm | 150 to 350mm | |
| Film width | ≤520mm | ≤720mm | |
| Voltage | AC220V/50Hz, 1phase or Per customer specification | ||
| Power Consumption | 3KW | 4KW | |
| Compressed Air Requirement | 0.6 MPa, 0.36 M3／min ( 87 Psi, 12.7cfm) | ||
※Above parameters are able to be customized properly as requests.
IAPACK have been producing vertical packing machines, multi-heads weighers and linear weighers, filling units, food processing machines, vertical and Z type elevators, various conveyors and special projects since 1995. Since it was established, iapack following and implementing new technology, have been pioneers on initiation and development of many innovations. Our main aim is to produce qualified and effective machines for presenting our customers much more qualified facilities appropriate for developing technology and international standards. With our experience for 20 years in the market, we can build whole food processing factories from harvesting to final packaging. Our products are with the best quality and also competitive prices. Wishing to be together for many years.
