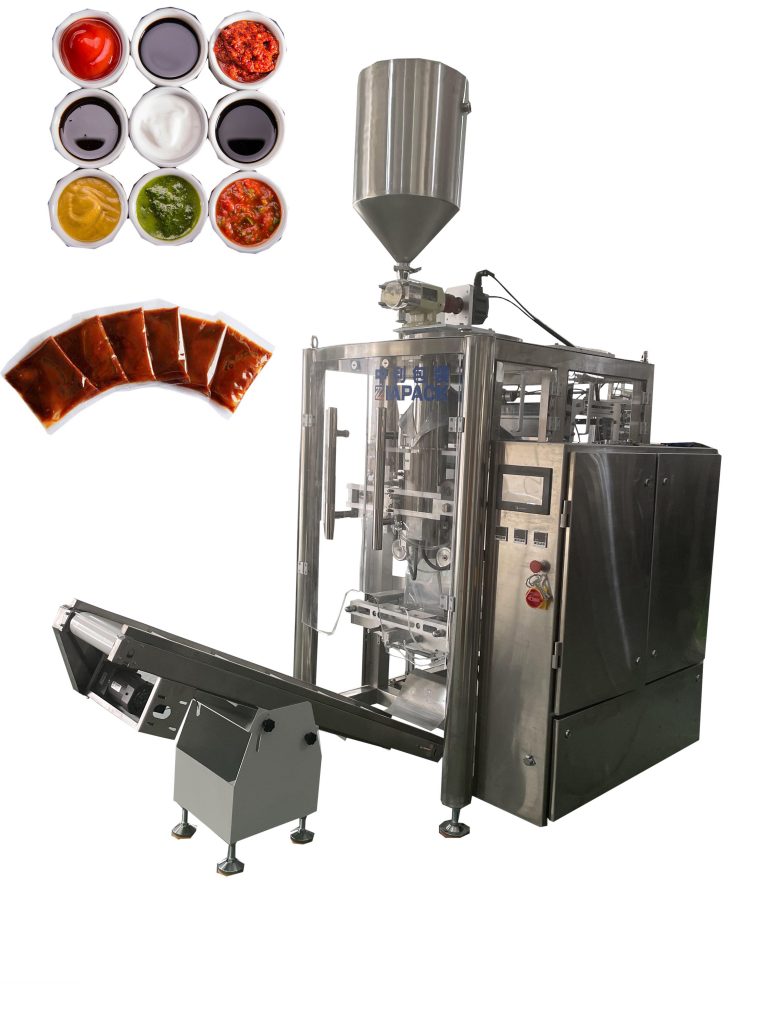

Applications:
Suitable for automatic packaging of liquid,water,milk,juice,sauce,ketchup,chemical liquid,oil etc.
Features:
Stainless steel systems
Wide range of package styles include pillow bag, gusseted bag, block bottom bag or quad seal packs
With the ZL series the production of 3 or 4 side-seal pack is available.
Up to 5 liter filling volume

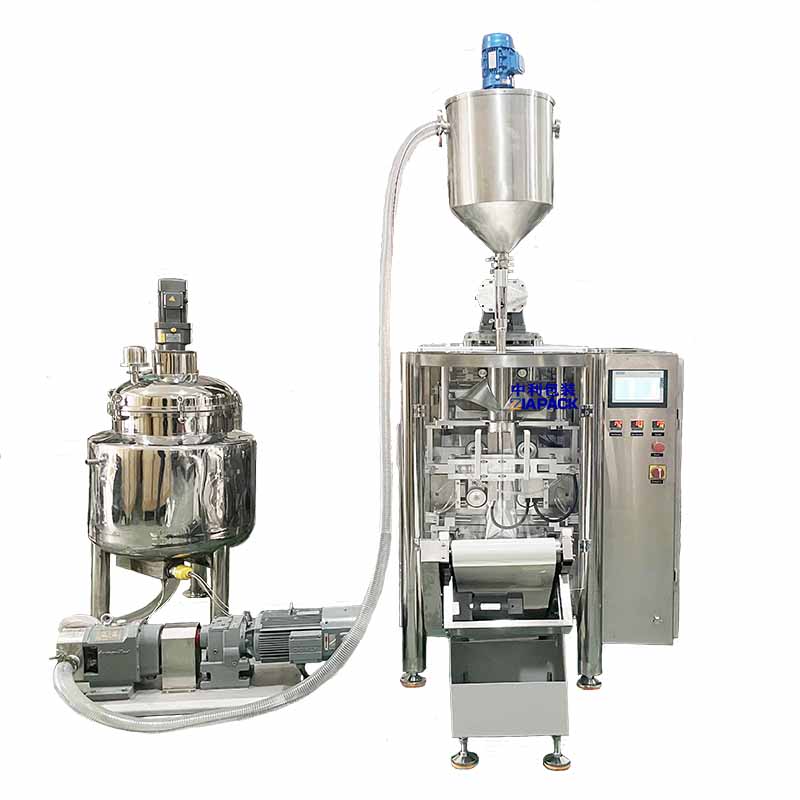

Pumps for continuous or intermittent liquid feed to bagger
Rugged, durable equipment to withstand severe environment
Customized to meet your production, package style and economic requirements
Optional Device:
Filling nitrogen device, gusseted device, punching jaws, chain bags device, PE fillm device,venting device.
Technical Specifications:
| Model | ZL-420 |
| Product Size | 1388*1116*536mm |
| G.W | 500kg |
| Packing Speed | 5-60Bags/Minutes |
| Packing material | OPP/CPP OPP/CE PET/PE |
| Electric Voltage | 110V/220V, 50HZ/60HZ |
| Bag Width | 200mm |
| Max width of the Film | 420mm |
| Material | 201/304 Stainless Steel |
| Brand | ZHONGQI/OEM |
| Power | 3KW |
| Warranty | 1 year |
| Packing Size | 1398*1126*546mm |
| MOQ | One Set |
| Payment | T/T, L/C, CASH, D/P, VISA |
Single Head Piston Filler For Viscous Liquid
Horizontal single head piston filler for viscous liquid,such as ketchup, mayonnaise, cream, butter, jam, honey, shampoo etc.
Principal Features:
Standard with Airtac Piston.
All piston filler made from S/S 304 grade stainless steel and aluminum conforms to GMP.
Viscous Liquid Model with stainless steel product hopper
Operated by foot pedal switcher or by automatic timer.
With Anti-leaking system
Product suction and dispensing speed adjustable.
No-Tools for set-up and adjustment.
Sanitary tri-clamp connections easy wash
Quick release nozzle and feed pipe
Small footprint for simple bench mounting
Be able to be equipped with other automatic packaging machine
Most commonly applicable for pharmaceutics, daily chemicals, foodstuffs, cosmetics, pesticides and other industries.
Option:
Food and pharmaceutical S/S 316 grade stainless steel contact parts.
For some viscous liquid, the mixing & heating hopper is option.
Standard with electric solenoid control, we have pneumatic solenoid valve to work without electric option at full Pneumatic Driven
Technical Specifications:
Air Consumption: 0.6CBM/H
Air Supply Pressure: 0.4-0.6Mpa
Operation Efficiency: 10-20 bottles per min (depends on product and container size)
Filling Precision: <=±1%
Dimension & Weight: Variable, depending on the application
