Introduction :

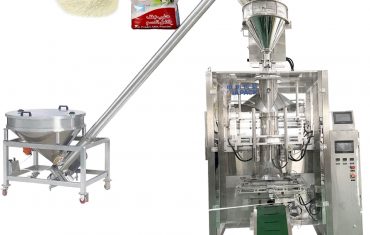

This machine unit is including one set ZL1100 vertical bag forming filling sealing machine and one set ZL2000 auger measuring machine .The whole machine unit can reach automatic bag making ,Product weighing ,product filling sealing and date coding .Widely use for packing wheat flour ,coffee powder and milk powder and other powder product .
Features :
The whole machine made by Stainless Steel 304, This machine equipped with bag-making, cutting, code printing , etc. OMRON PLC and Touch Screen，Panasonic servo motor, Japanese Photo Sensor , Korean Air valve, etc..The film pulling system adopted servo motor driving making speed faster .
Technical Parameters:
Weighing Range: 400-2.5kg
Packaging Speed:15-25bags/min
Bag size: (390-580)*(240-460)mm(L*W)
Compressed air requirement: 0.6Mpa 0.65m³/min
Reel outer diameter: 400mm
Core inner diameter: 75mm
Machine weight: 800kg
Power source: 7.5kW 380V±10% 50Hz
Bag type :
Main Features and Characteristics:
A wide range of pouches: Pillow bag
High speed: More than12-25 bags/min
Easy to operate: PLC controller and color touch-screen, fault indication on the touch screen.
Easy to adjust: only about 10 minutes to change different pouches.
Frequency control: speed can be adjusted by frequency conversion within the range.
High Automation: unmanned in weighing and packing process, machine alarm automatically when failure.
Safety and Hygiene:
No film, machine will alarm.
Machine alarm and stop when the inadequate air pressure.
Safety guards with safety-switches, machine alarm and stop when the safety guards are opened.
Hygienic construction, the product contact parts are adopted sus304 stainless steel.
