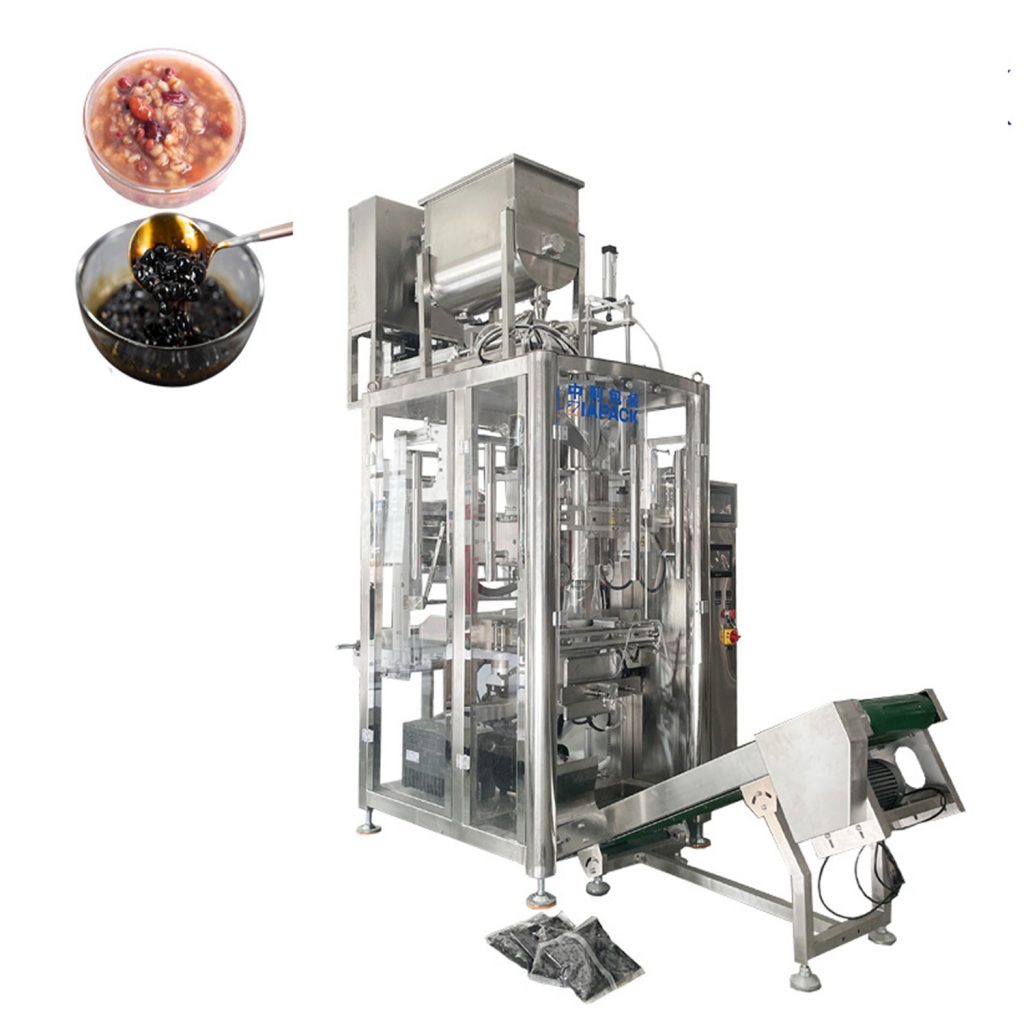

Automatic liquid and solid mixture product soft bag forming weighing filling sealing packaging machine
Introduction :This unit machine is special design for packaging liquid and solid mixture product into plastic bag .The machine have the function of automatic bag forming ,Solid product weighing ,Liquid product measuring and filling .With optional function of exhausting the air inside the bag and then sealing the bag .The machine also have color ribbon for date printer for coding of expiry date and production date .
Technical Parameters
Weighing Range: 500-2000gram
Packaging Speed:20-50 bags/min
Bag size: (80-350)*(60-260)mm(L*W)
Compressed air requirement: 0.6Mpa 0.65m³/min
Reel outer diameter: 400mm
Core inner diameter: 75mm
Machine weight: 800kg
Power source: 5.5kW 380V±10% 50Hz
Main Features and Characteristics:
A wide range of pouches: Pillow and Gusset pouches(option).
High speed: More than20-60 bags/min
Easy to operate: PLC controller and color touch-screen, fault indication on the touch screen.
Easy to adjust: only about 10 minutes to change different pouches.
Frequency control: speed can be adjusted by frequency conversion within the range.
High Automation:unmanned in weighing and packing process,machine alarm automatically when failure.
Safety and Hygiene:No film, machine will alarm.
Machine alarm and stop when the inadequate air pressure.
Safety guards with safety-switches, machine alarm and stop when the safety guards are opened.
Hygienic construction, the product contact parts are adopted sus304 stainless steel
