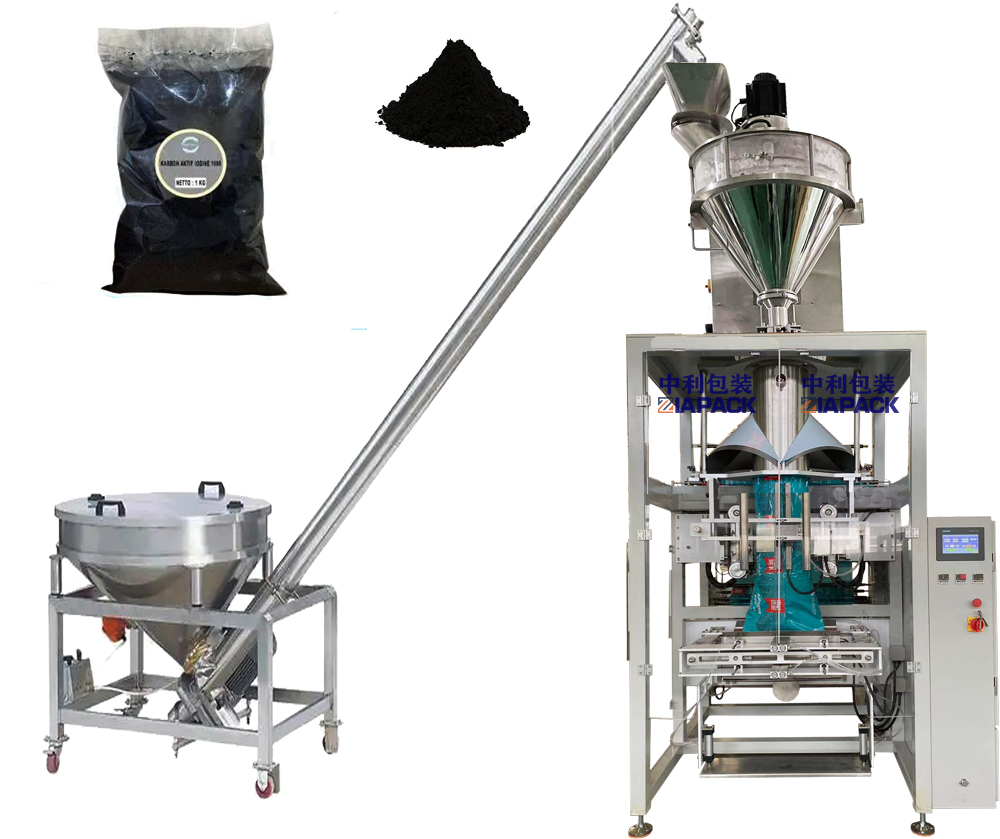

Automatic carbon powder bag forming filling sealing packaging machine
This unit machine is special design for packaging activated carbon powder .The whole machine can automatic forming filling and sealing the bag .With auger filling head for measuring the powder and dischare into bucket with loadcell .So accuracy is higher .The whole machine control by PLC and operate on colorful display .
Technical Parameters:
Weighing Range: 5-10kgs
Packaging Speed:2-8bags/min
Bag size: (200-520)*(150-520)mm(L*W)
Film roller width :1200mm
air requirement: 0.6Mpa 0.65m³/min
outer diameter: 400mm
inner diameter: 75mm
inner weight:980kg
Features :
Film transport system and horizontal Jaw motion both drive by Panasonic
Safe quick change of tube and collar for different size bag
Optoelectronics detect film position on collar to correct film excursion
Electrical photo sensor inducting color code to control bag length
Unique Pneumatic Film-Reel locking structure to avoid film drawing deflecting
Independent temperature adjustment.
Date coding by ribbon
Various types of heating sealable laminated films namely PE/BOPP, CPP/BOPP, CPP/PET, PE/NYLON, aluminum foil based can be run on the machine.
Material contact part made by SUS304(Can made by 316)
