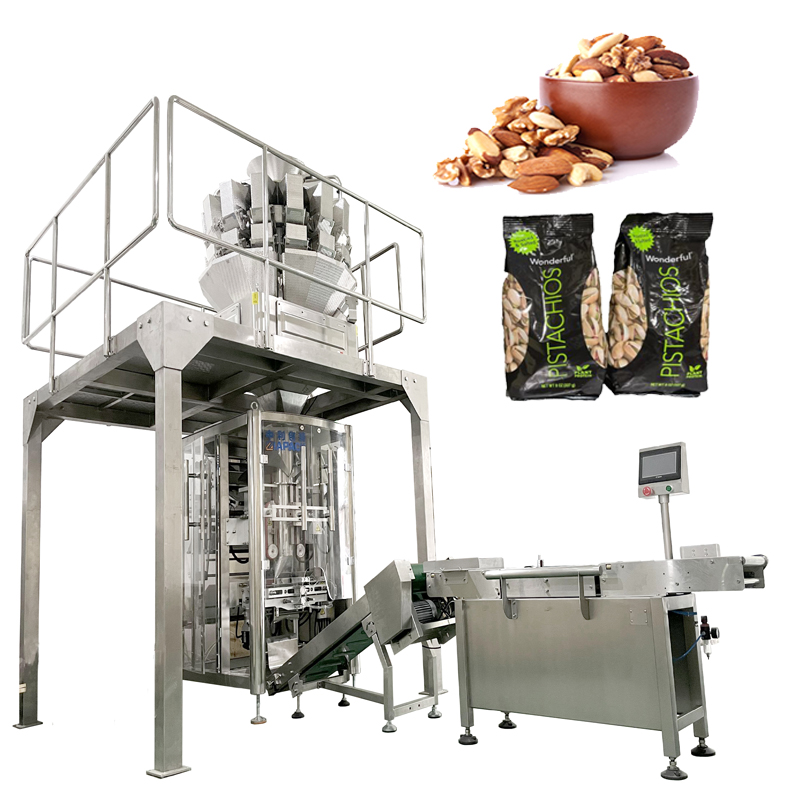

Applications
All kinds of grain material, sheet material, strip material and abnormity material which such as candy, melon seeds, chips, peanut, nutlet, preserved fruit, jelly, biscuit, confect, camphorball, currant, almond, chocolate, filbert, corn, Potato Crisps, pet foodstuff, dilatant foodstuff, hardware and plastic can be weighed by the ration.
Features
1.Efficient: Bag - making, filling, sealing, cutting, heating, date / lot number achieved in one time;
2. Intelligent: Packing speed and bag length can be set through the screen without part changes;
3. Profession: Independent temperature controller with heat balance enables different packing materials;
4. Characteristic: Automatic stop function, with safe operation and saving the film;
5. Convenient: Low loss, labor saving, easy for operation and maintenance.
Optional Device
Filling nitrogen device, gusseted device, punching jaws, chain bags device, PE fillm device,venting device.
Technical Specifications
Model | ZL-420 | ZL-520 | ZL-720 |
Film Width | Max.420MM | Max.520MM | Max.720MM |
Bag Length | 80-300MM | 80-350MM | 100-500MM |
Bag Width | 60-200MM | 100-250MM | 180-350MM |
Film Roll Diameter | Max.320MM | Max.320MM | Max.320MM |
Film Thickness | 0.04-0.12MM | 0.04-0.12MM | 0.04-0.12MM |
Packing Speed | 5-60Bag/Min | 5-60Bag/Min | 5-55Bag/Min |
Power | 220V 50/60HZ 2KW | 220V 50/60HZ 3KW | 220V 50/60HZ 3KW |
Machine Size(MM) | (L)1217* (W)1015*(H)1343 | (L)1488* (W)1080*(H)1490 | (L)1780* (W)1350*(H)2050 |
Machine Weight | About 650KG | About 680KG | About 750KG |
Option Device | Two synchronous belt device, air filling device, angle fold device, automatic rectifying device, hole-punching device, link bag device. |
PARTS | SUPPLIER |
PLC | Panassonic |
Touch Screen | Weinview |
Servo Motor | Panassonic |
Servo Driver | Panassonic |
Solid state Relay | Crydom |
Intermediate Relay | Omron, IDEC |
Switching power supply | Schneider |
Air Cylinder | AIRTAC |
Gear Motor | V.T.V |
Electromagnetic Valve | SMC |
Pneumatic FRL | SMC |
Sensors & controllers | AUTONICS |
