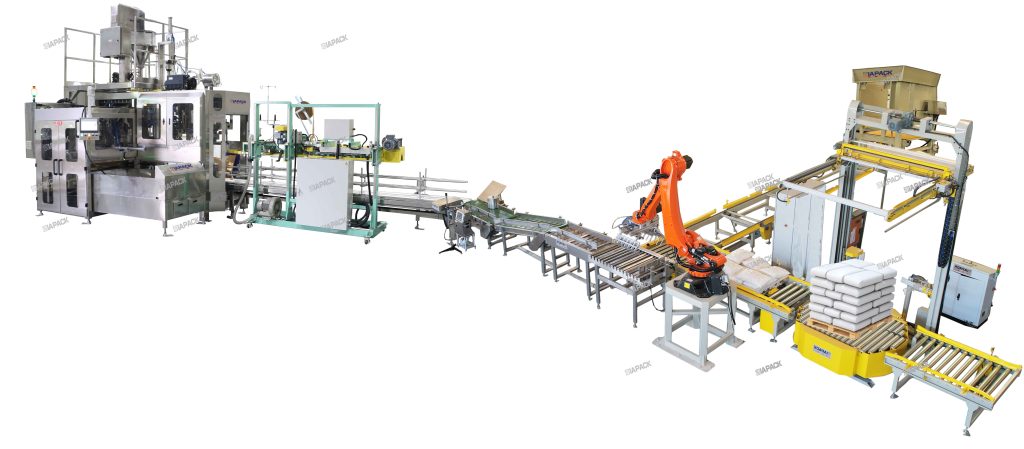

Open Mouth Bag Placer, Filler & Closer (Bulk Products)
The most advanced outcome of bagging technological evolution, fulfilling all needs of granulated and powder solids products with medium flow characteristics, widely applied in foods, chemical, agriculture, pharmacy etc. industries.
Bag placer & Filling mouth
The bag placer transfer the empty bags, different sized, with or without gussets, to the filling mouth, where hermetic closure permits air evacuation during the filling due to its oval design. The motive device are placed out of the mouth area to avoid dusty and/corrosive atmospheres.
Features
10-25kg packaging, with a capacity of 1000 bags/h(according to different bag, raw material)
- It’s suitable for paper bag, PE bag, woven bag. Paper bag & woven bag can adopts sewing sealing (DS-8C). PE bag adopts hot sealing (HS-22D).(Final decision according to customer’s requirements.)
- Empty bag putting process detected by detector’s dual-confirmation. Filling process stopping automatically when leakage appears or no bag putting on.
- Automatic bag feeder consists of horizontal 3 units, each unit can store 100 bags(PE bag), suitable for high speed production.
- Full automatic running.
- Additional middle damper in auger hopper (optional), air chute (optional), to prevent product splash, promote the dedusting result.
- Vibration gas exhaustion device for non pinhole bag is optional, to eliminate the rest air in the product.
Technical Data
Packaging materials: 1. Woven Bags (covered film) 2. Kraft paper bags 3. Plastic composite film (thickness greater than 0.18 mm)
Package Dimensions (Unit: mm): (700-1100) × (480-650) L × W
Package weight: 25-50 kg / bag
Measurement accuracy: ±50g
Speed:10-15 packs / minute (depending on packaging materials, bags and other dimensions may vary slightly)
Air supply: about 0.5 ~ 0.7Mpa
Power: about 6.5 KW 380 ± 10% 50HZ
Dimensions (unit: mm): 5700 × 2800 × 2100 (L × W × H)
Seal: 1. Woven bag:lura folding/ seaming
2 kraft paper bags: sealing / seaming
3 composite film bag: sealing
