FOOTPRINT
- Length: 4300mm
- Width: 3500mm
- Height: 3700mm
BAG MATERIALS
Laminated polywoven, paper and polyethylene
Flowing Process:
Bag placing→ Automatic filling→ Automatic weighing→ Automatic bag conveyer→ Automatic bag top sewing / sealing
FEATURES
1. Automatic quantity-fixed balance
2.Automatic bag-supply section
3. Optional section such as air compressor
4.Automatic bag-clamped section
5. Automatic belt conveyor
6.Automatic sewing / sealing machine
7. Automatic bag-backwards section
8.Electrical instrument control cabinet
Characteristics:
Picking bag, feeding bag, filling material, weighing in , sewing / sealing bag, bag-backwards and bag transmission are finished completely automatically.
Adopting PLC to guarantee the reliability of control
Adopting high-precision transducer and intelligent instrument to guarantee the accuracy and speed of weight
Adopting touch screen with trouble display and help system for easy operation.
Adopting imported pneumatic components features compact structure, reliable performance and convenient maintenance.
The sewing / sealing machine is an imported machine.
Applications
Rice, Wheat, Pulses, Granules, Powder, Chemicals etc

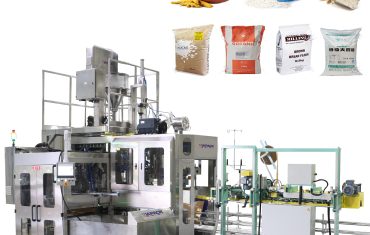

It is Completed Automatic Packing Machine applicable for packing powder in industries such as chemistry, fertilizer, grain, food, feed, medicine, construction materials industry, etc. fully automated bagging machine for urea
Technical Data
| Weighing range | 5 to 50kg (10lb to 110lb) |
| Bag size | L630-830mm x W 350-450mm; L800-1000 x W450-550mm; L 900-1100mm x W 550-650mm (By option) |
| Output | 3 to 16 bags per min (Depending on the product and format.) |
| Ambient temp. | -10°C to + 45°C |
| Electrical | 380V/50Hz, 3phase or customized per specification |
| Power | 3KW |
| Air Pressure & Consumption | 0.7Mpa, 0.6 M3／min |
